Some Interesting Hardware

Posted on Posted in Blog

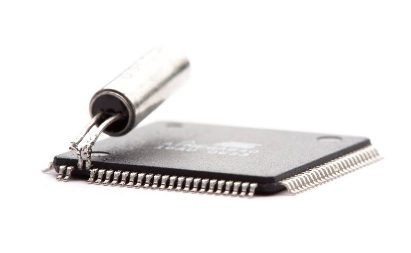

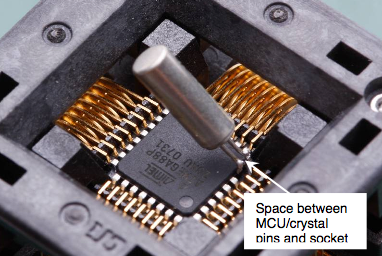

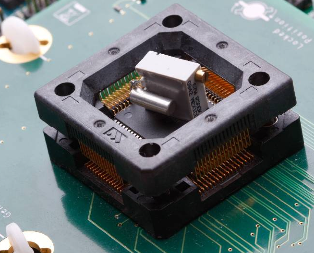

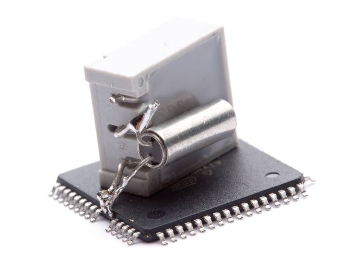

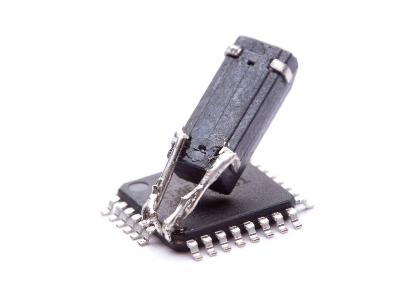

Screen Shot 2013-04-09 at 8.00.12 PMAtmel has just released an Application Note on the use of 32,768 Hz Crystal Oscillators, and how to test them to ensure that they will operate correctly. This document contains some of the more interesting component placements that I have ever seen. Some more images appear below.







Screen Shot 2013-04-09 at 8.00.05 PMScreen Shot 2013-04-09 at 7.59.54 PMScreen Shot 2013-04-09 at 8.03.50 PMScreen Shot 2013-04-09 at 8.03.37 PM
